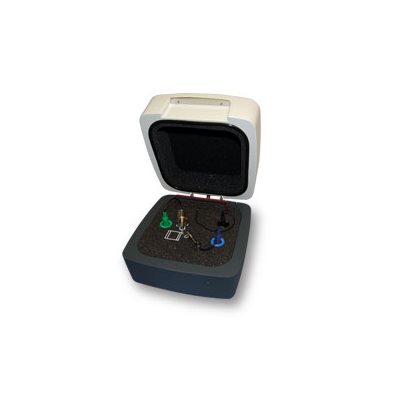

MedRx Avant HIT+ Hearing Instrument Test Chamber
Product Code: MEDRX-AVHIT
The MedRx AVANT HIT+ is a compact, PC-based hearing instrument test chamber designed to evaluate hearing aid performance through automated electroacoustic measurements. The system supports ANSI and IEC standard testing protocols, providing clinicians with a convenient way to verify hearing instrument performance and identify potential problems.
The AVANT HIT+ performs 10 automated, user-selectable hearing instrument tests, with customizable test protocols to accommodate different clinical needs. Its acoustically dampened enclosure, USB-powered operation, and compact design make it a practical solution for hearing instrument testing, with results stored in Noah and compatibility with TIMS and other supported patient management systems.
- Offers comprehensive hearing instrument testing capabilities
- IEC and ANSI standard measurements
- OSPL90
- Full-on gain
- Reference test gain
- Frequency response
- Equivalent input noise
- Harmonic distortion
- Battery current
- Input/output (AGC)
- Attack and release time
- Induction coil measurements
- Compact, portable design
- Small footprint for convenient placement in clinical settings
- Acoustically dampened test chamber
- USB-powered, eliminating the need for a separate wall power connection
- Specifications
- Testing standards: ANSI S3.22 and IEC 60118-7
- Frequency range: 125 Hz - 8000 Hz
- Maximum speaker output: 95 dBSPL
- Coupler microphone maximum input: 140 dBSPL
- Battery simulator: 0.1 - 1.5 V in 0.1 V increments
- Battery current measurement: 20 uA-20mA
- Connectivity: USB
- Power: USB-powered
- Dimensions & Weight
- 9.5"W x 9.8"D x 6"H
- 7 lbs
- Quantity Available: 0
- couplers
- battery pills
- cables and software
